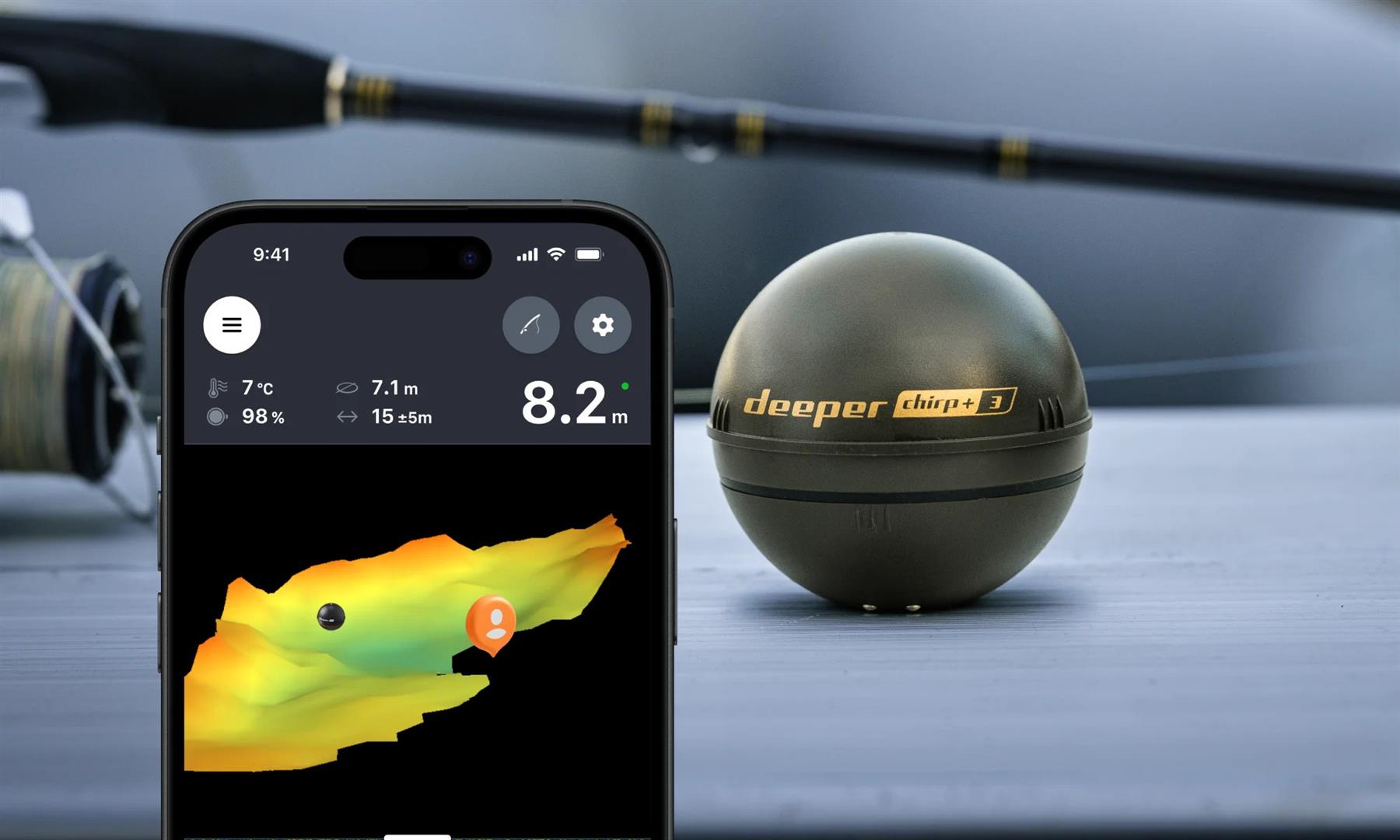

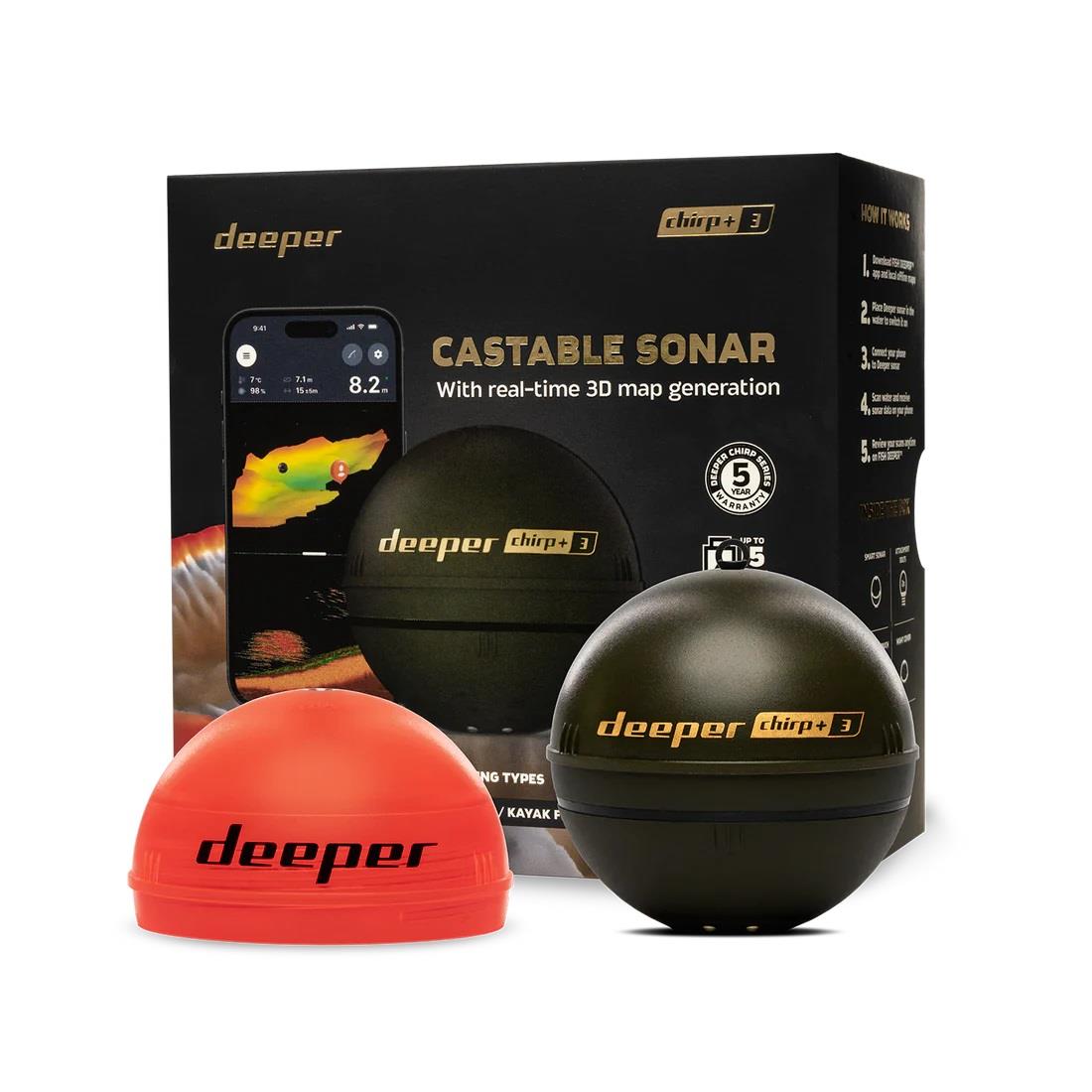

Deeper CHIRP+ 3

Take your fishing to the next level with unparalleled CHIRP+ 3 accuracy and custom 3D bathymetry mapping. Pair it with Fish Deeper, for an all encompassing experience, allowing you to plan, analyze and log your fishing adventures.

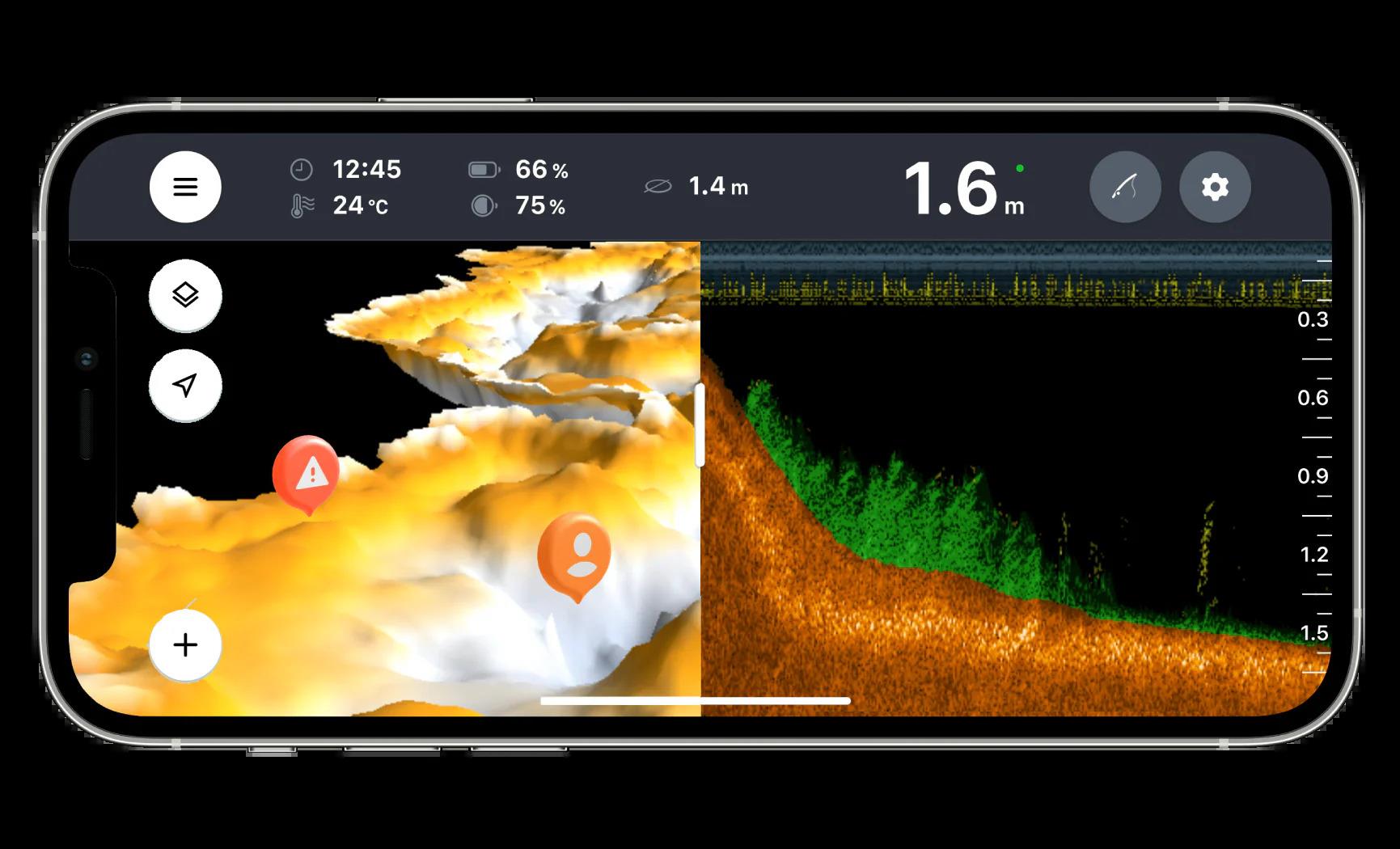

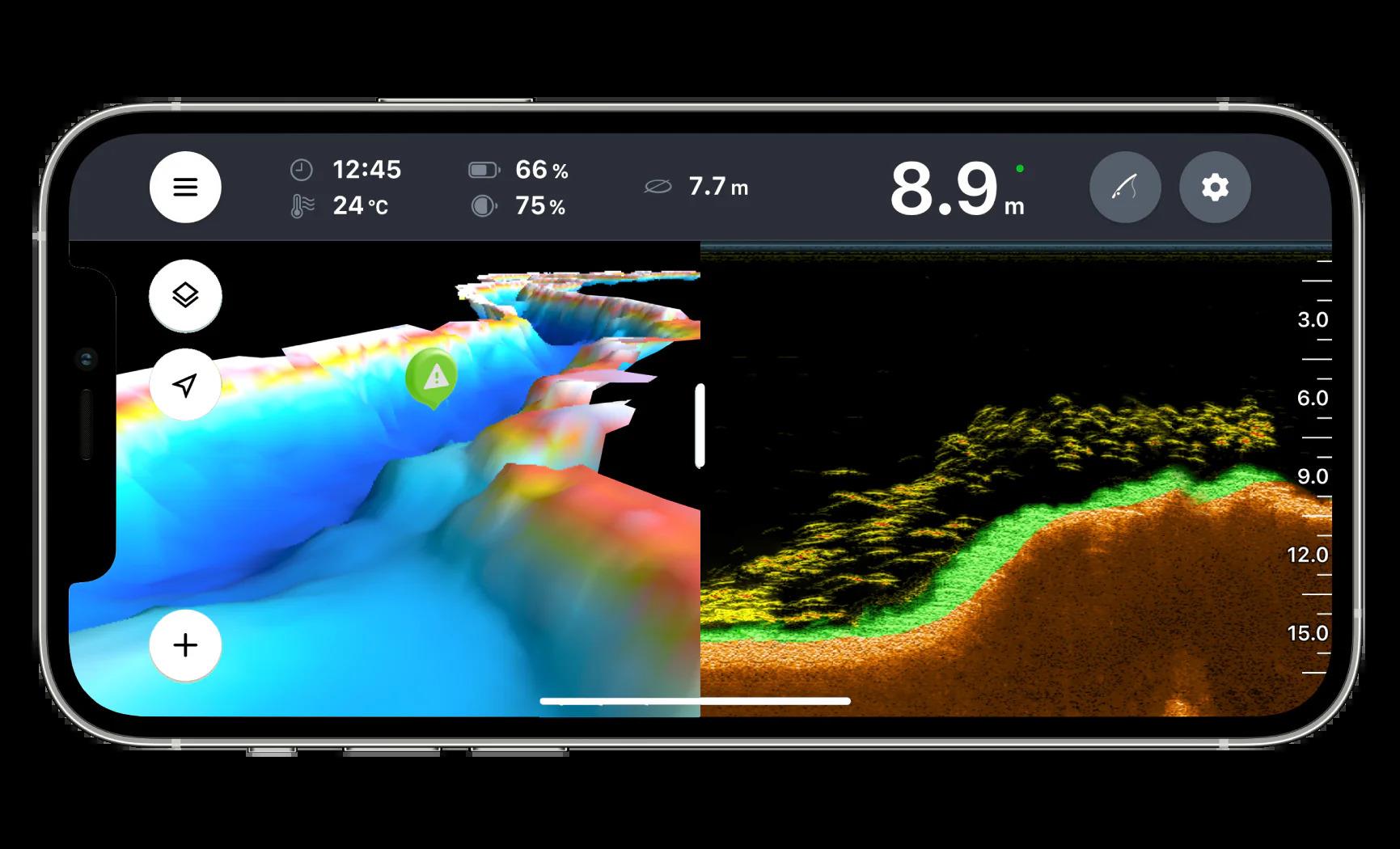

The Deeper Chirp+ 3 Sonar brings incredible detail of your venue with bathymetry mapping generating live 3D maps and giving an accurate picture of bottom structure, depth, and hill slopes. An ultra-precise 1cm target separation that allows you to distinguish even the smallest fish, pinpointing targets to maximise your catch efficiency. Featuring three beam frequencies, a wide beam for quick area scanning. A mid-point beam for balanced detail and a narrow beam for pinpoint accuracy. Simply pair with the Fish Deeper app on your smartphone, and you're ready to go.bottomstructure,depth,hillsandslopes

Features

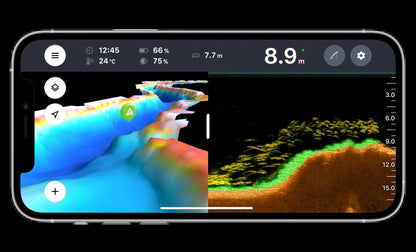

3D personal bathymetry

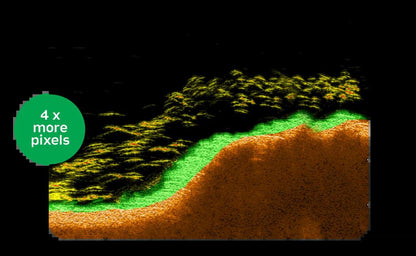

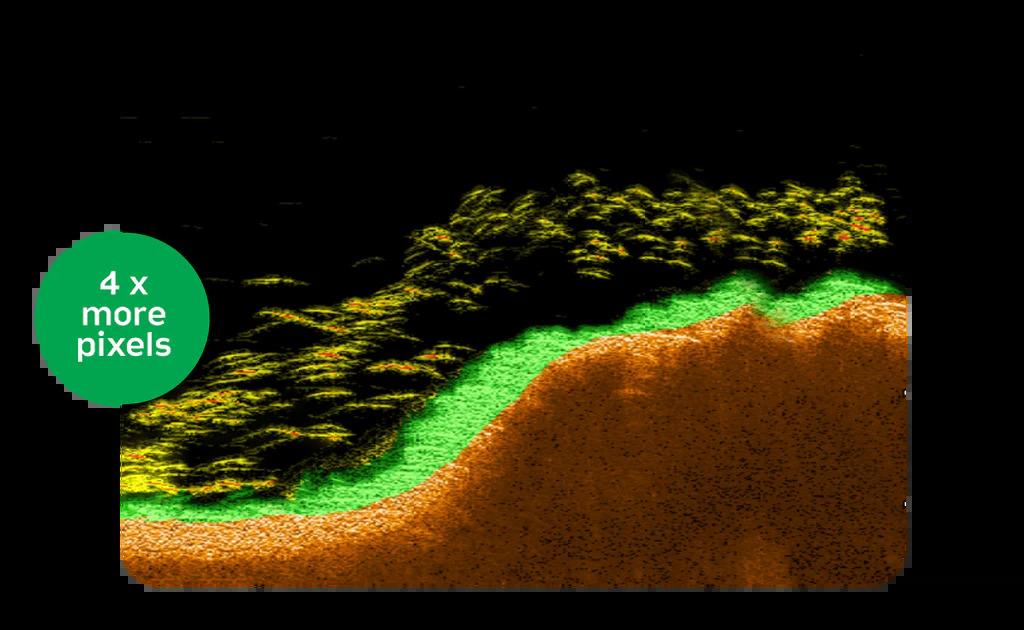

Higher detail sonar readings

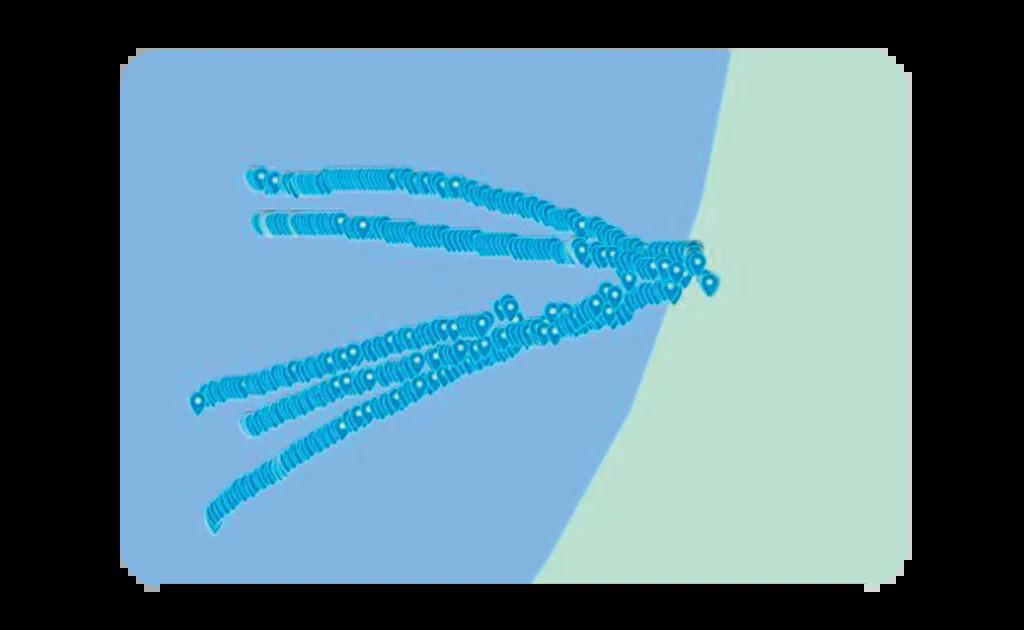

High accuracy GPS
5-year warranty

Specifications
Material - ABS enclosure
Sonar Type - 3 Frequency
Frequency (Beam cone) Narrow 675 kHz (cone angle 7°) - Medium 240 kHz (cone angle 20°) - Wide 100 kHz (cone angle 47°)
Target separation - 1 cm / 0.4 in Narrow beam - 2.4 cm / 1 in Medium beam - 2.4 cm / 1 in Wide beam
Min - Max depth - 15 cm - 100 m / 6 in - 330 ft
Scanning rate - Up to 15 / second
Temperature sensor - Water surface temperature sensor in Celsius / Fahrenheit
Operating temperature - 20°c to 40°c
GNSS (Global positioning systems supported) - GPS, GLONASS, Galileo, BeiDou, QZSS
Operating time - Up to 9 hours
Charging technology - Fast charge - 80% in 45 min - 100% in 75 min.
Internal battery - Li-Ion, 3.8V Rechargeable, 1300 mAh
Outlet adapter (not included) - Input 110V/220V. Output Micro USB, 5V 2A
Connectivity - Wi-Fi
Connectivity range - Stable connection up to 100 m / 330 ft
Colour - Black
